Hospitals

BMS for hospitals

One characteristic feature concerning hospitals is the multitude of different rooms like operation rooms, recovery rooms, surgery, pharmacy, nurse´s station, entrance, patient´s rooms, therapy rooms, labors, pathology, etc.

As a result, the building management system has to deal with different requirements concerning temperature, shading, lighting, ventilation and function control. The reliability of the building automation system is of utmost importance. For this reason a main/backup solution might be interesting for hospitals. If the communication with the main server is interrupted, the connection to the backup server is activated automatically. The server still receives information from the building automation system.

Hospitals are places where the patients should recover. An intelligent building automation system can support this process by adapting the share of natural light and the room climate to the current needs of the patient. Furthermore, hospitals have areas with restricted access e.g. rooms where medicine is stored. In this case the integration of access control systems into the building automation system pays off.

In public hospitals, costs become important. Accordingly the building automation system should allow the recording and analysis of consumption values of smart meters. If this data can be stored in a database, the consumption of different periods can be compared. This might help to identify consumption peaks and saving potentials.

Often, hospitals consist of multiple, locally separated buildings in one area. To allow a central control anyhow, using clustering is one possibility. In this case every building has its own server, which acts as sub server. All sub servers are connected via Wide Area Network with one central main server. All sub server can operate independently, while the main server collects all data from the different buildings.

Lighting

HVAC

Shading

Trends/reports

Alarm management

Hotelmanagement

Door locking systems

KNX - Modbus

NLSH Nordlandssykehuset

Norway

2 x NETx BMS Server
Data points 5,000

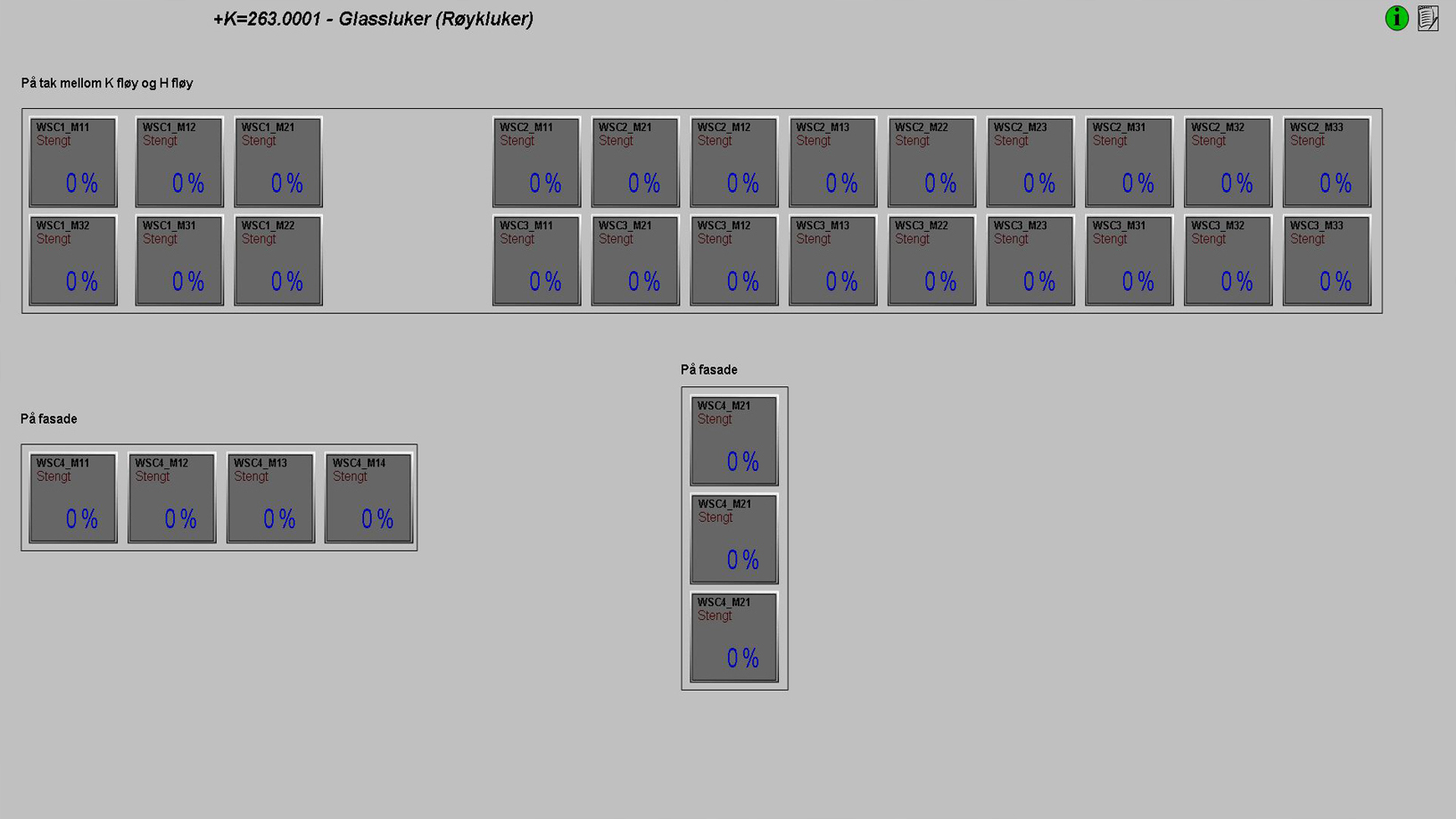

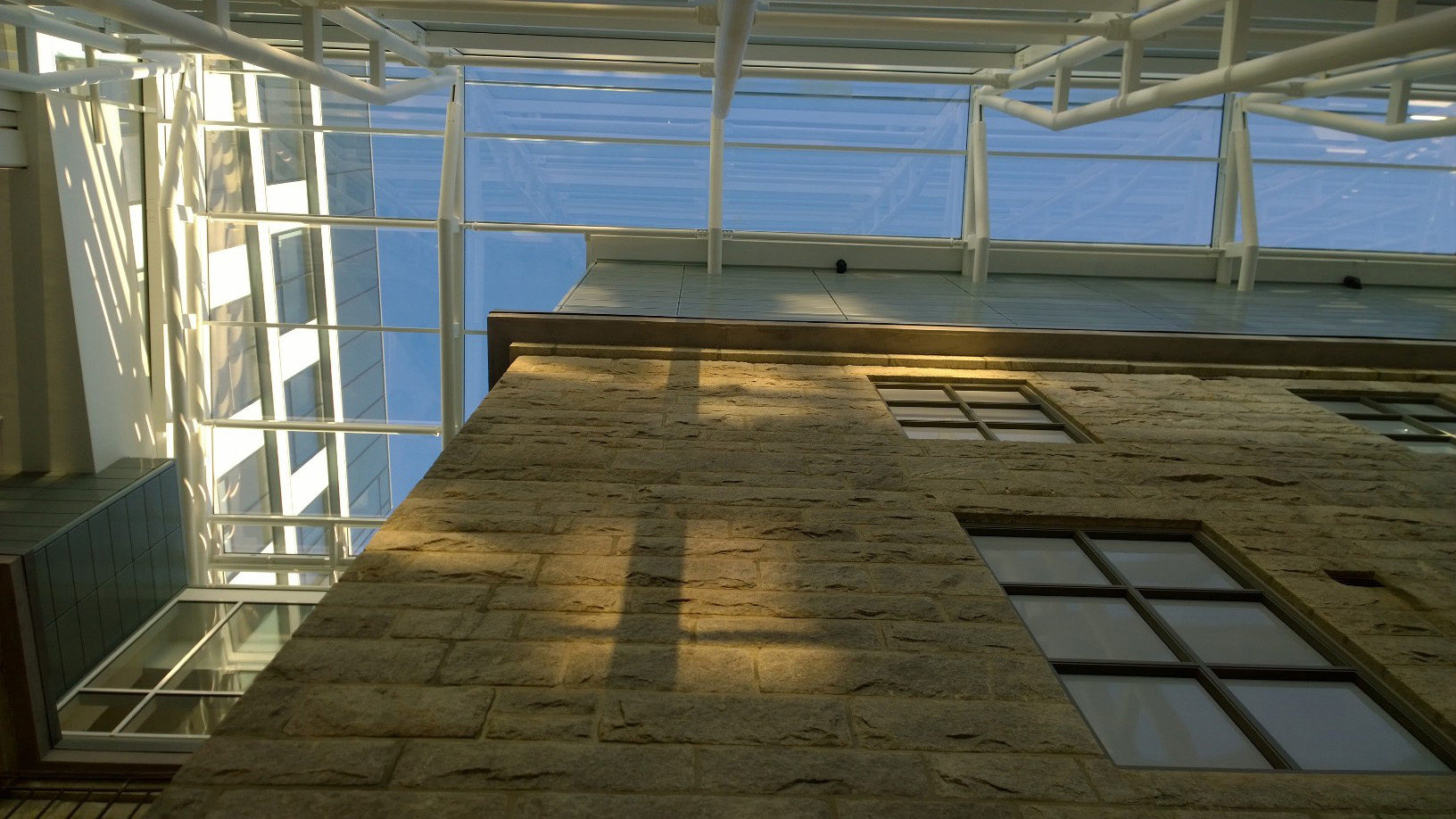

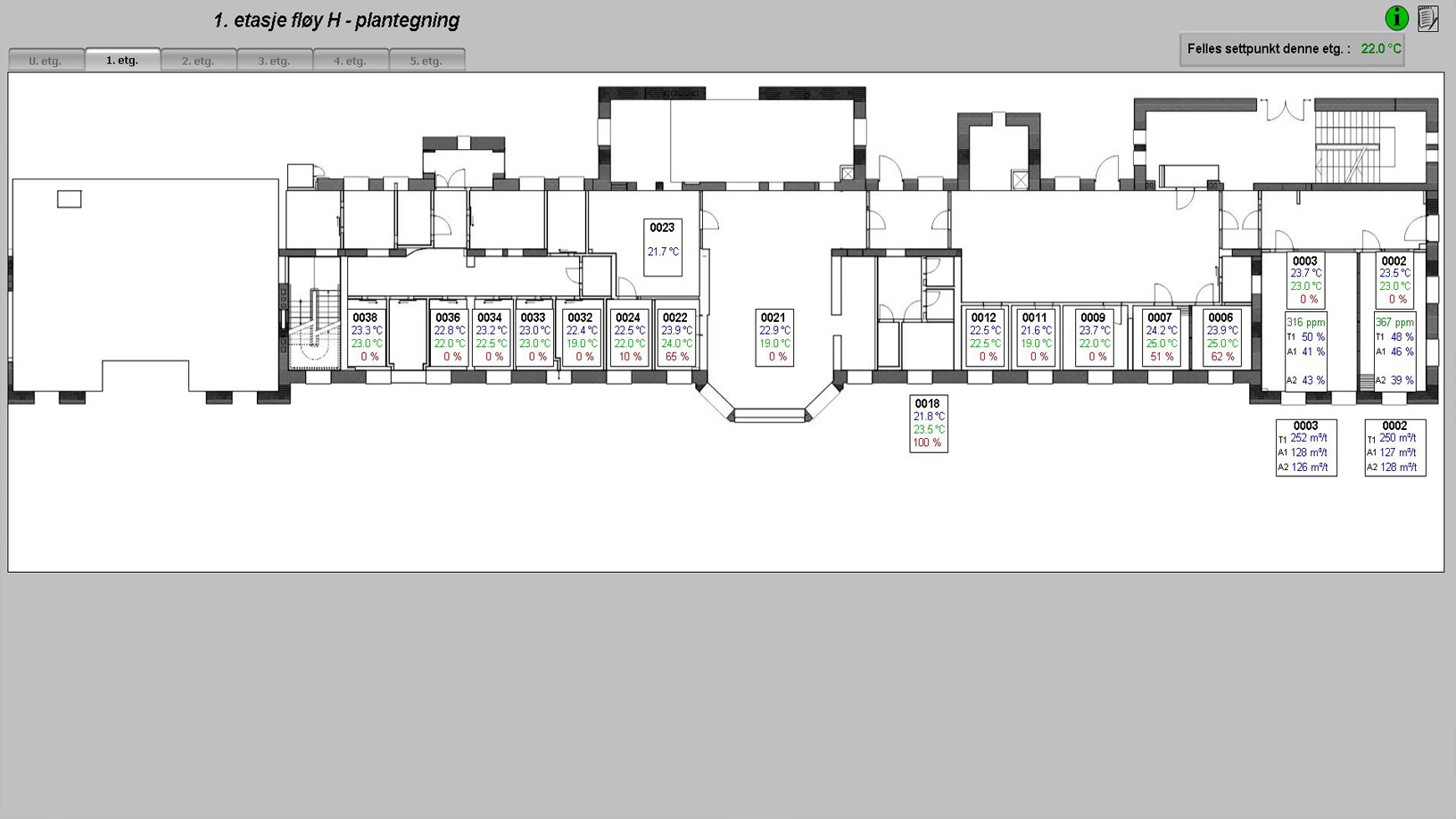

Trades: HVAC, shading, integration of weather station, glass roof control
System integrator: Nordkontakt AS

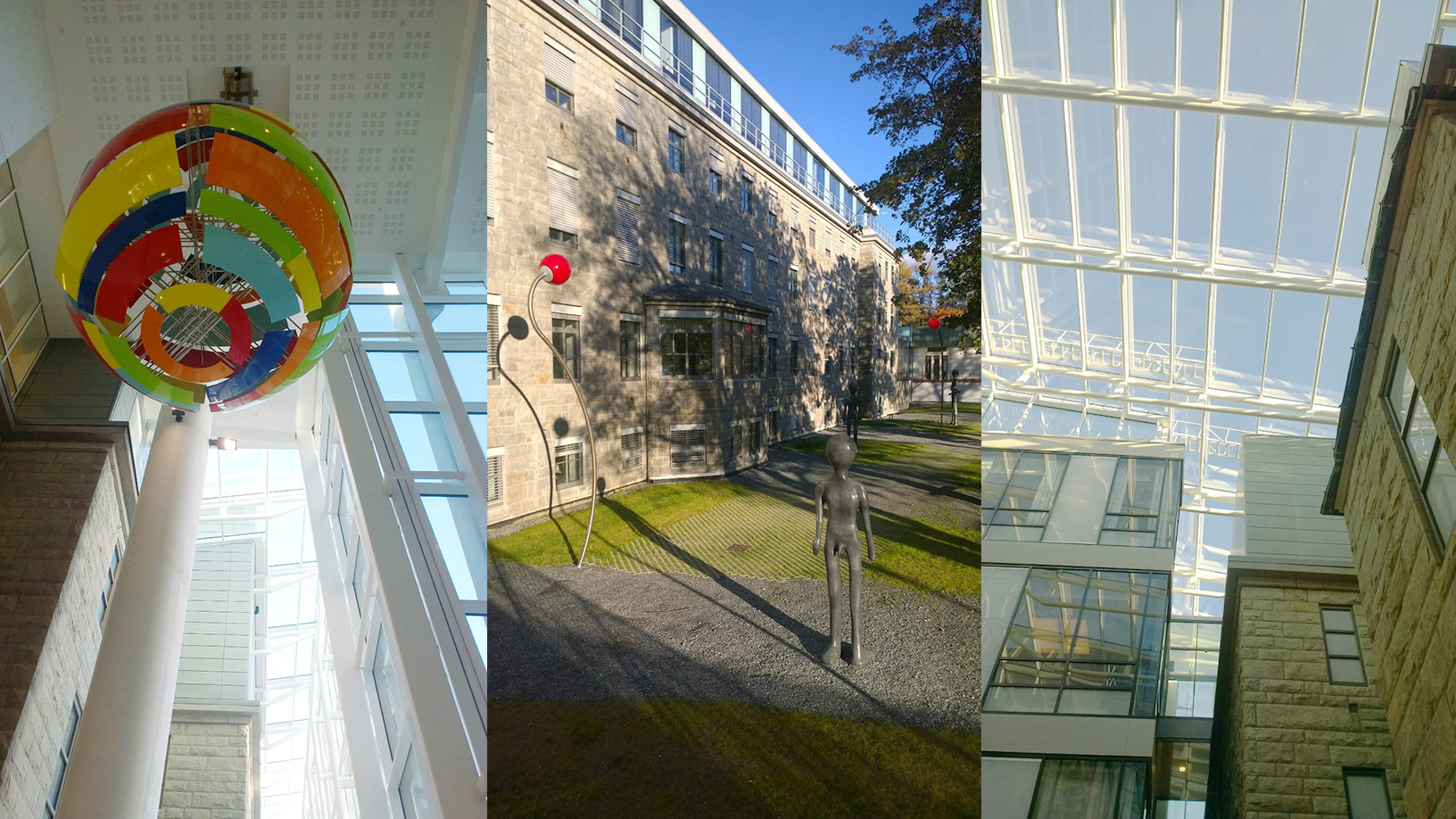

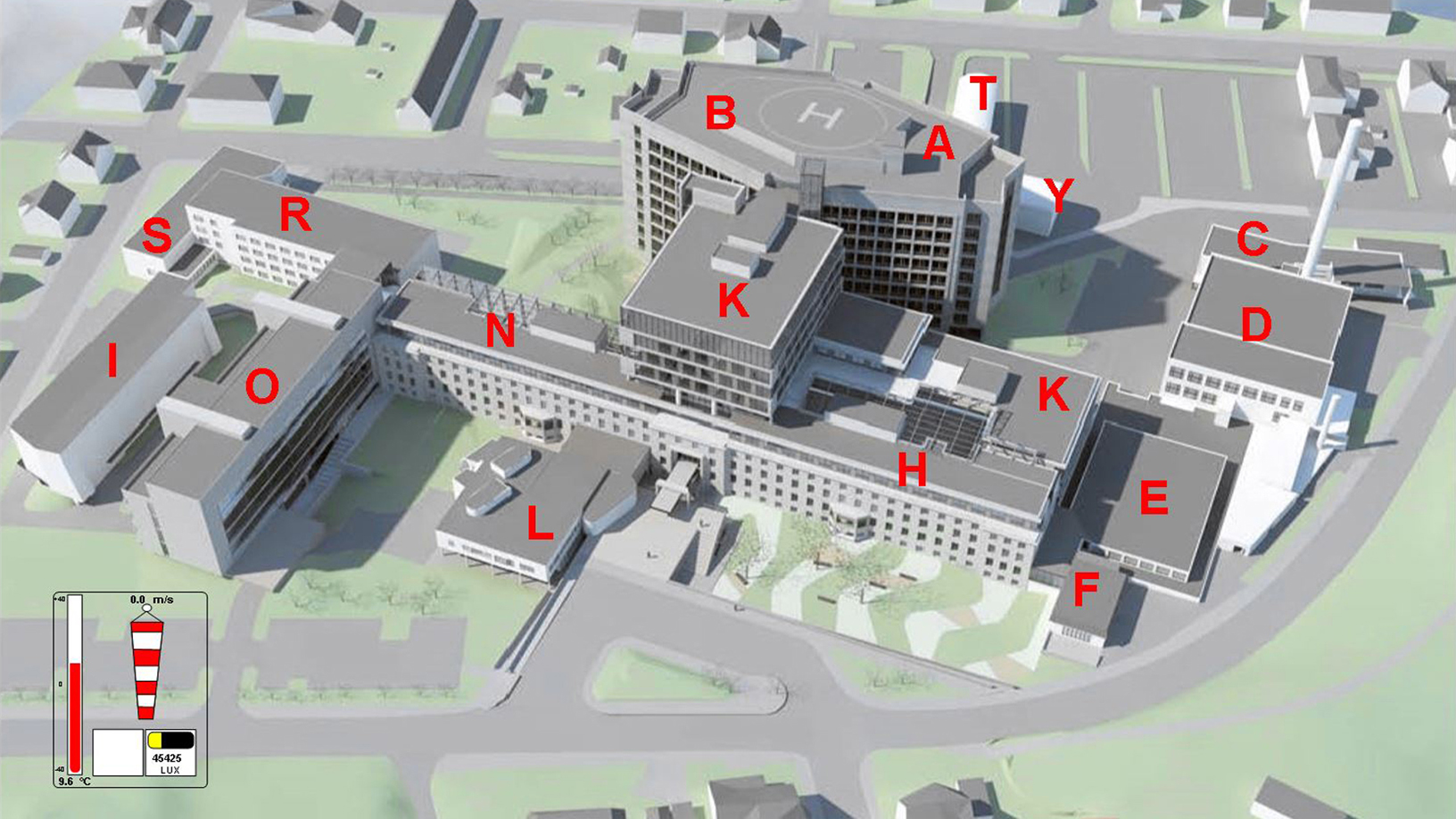

Nordland Hospital Bodø is the central hospital for Bodø (Salten) and surrounding municipalities. It also includes Lofoten and Vesterålen Hospitals as well as the Bodø Psychiatric hospital. The construction of the new hospital involved the conversion and modernization of the old hospital building as well as new construction.

The specifications stipulated that the KNX standard would be used for room-level building automation. Nordkontakt AS had good experiences with NETx Automation BMS Server from former projects and thus NETx BMS Server was chosen as the KNX server system that would be offered in Nordkontakt's bid on this project.

The project was carried out phase by phase and as far as the integration of KNX systems was concerned, went very smoothly. Nordkontakt also decided to move Modbus systems integration into NETx BMS Server to increase stability and to benefit of the gateway and data quality monitoring features.

"NETx has provided spectacular technical support along the way and Nordkontakt is planning on continuing the use of NETx BMS Server / Studio in several projects in the near future. " said Marko Tanninen from Nordkontakt.

Hospital Steyr
Steyr, Austria
EQOS-ENERGIE Österreich GmbH
Mental Hospital Linz
Linz, Austria
EQOS-ENERGIE Österreich GmbH
Hospital Vöcklabruck
Vöcklabruck, Austria
ALPINE-ENERGIE Österreich GmbH
Women`s Hospital Linz
Linz, Austria
EQOS-ENERGIE Österreich GmbH
Hospital Bielefeld
Bielefeld, Germany
Engineering Office Gnuse
Triemli Hospital
Zurich, Switzerland
Architect Association Triemli
